For 30 years, members of the American Society of Agricultural and Biological Engineers (ASABE) have recognized and honored the most innovative advancements in engineering in the areas of agriculture, food and biological systems with the AE50 Award. The products selected save producers time and reduce costs and labor, all while improving user safety.

To be eligible for the award, each development — which could be a component, machine, structure, system, end product or procedure — must embody the application of new technology or the innovative application of an older technology. The technology must be new to the whole industry, not just to an individual company. In addition, for the 2017 awards the development must have been first made available for purchase or ordering during the 2016 calendar year.

Each year an international panel of industry experts in technology, design and product development evaluate the entries and select up to 50 products for recognition.

Woods 30 & 40 Series Rotary Tillers


The Woods 30 and 40 Series rotary tillers are 3-point mounted, gear-driven tillers designed specifically for small-acreage farming and gardening. A unique double-flange rotor design was developed for these forward and reverse rotating tillers, which incorporates a single bolt that positions the tiller blade at the proper orientation for engaging the soil. The double-flange design creates two shear planes in the bolted joint, which reduces the load on the bolt by half when compared to existing single-flange designs. This design is advantageous in reducing assembly and service times by as much as 50% and providing a more durable product to the customer. This approach in attaching the tiller blade to the rotor shaft makes domestically manufactured components more competitive in a price-driven global market.

Blount International Inc., Oregon, Ill.

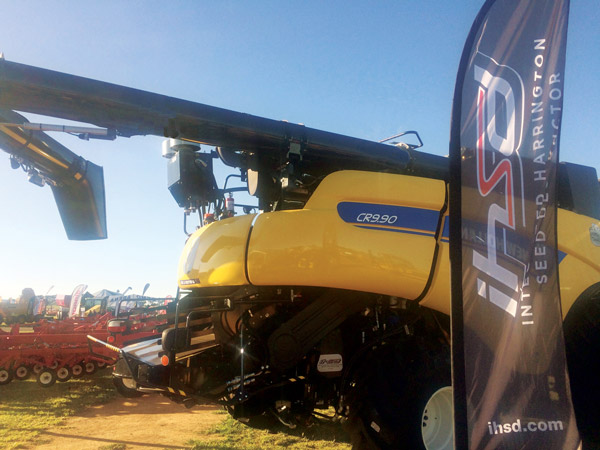

De Bruin Engineering Integrated Harrington Seed Destructor


The Integrated Harrington Seed Destructor, or iHSD, is an innovative weed seed management product that mechanically destroys weed seeds at harvest time. The iHSD is installed on and powered by a combine. Once the grain is separated, the chaff containing standing weed plants is processed through an impact mill that results in up to 99.8% destruction of specific weed seeds. Importantly, this process is non-selective to herbicide-resistant weed species. The benefits of using it in continuous cropping operations include reduced overall emerging weed numbers and decreased populations of herbicide-resistant weeds, resulting in lower volume, fewer spraying treatments and fewer chemical herbicide groups. Organic matter is returned to the field and retained, resulting in healthier, more productive soil and reducing the need for supplemental phosphate, nitrogen and potassium applications. The iHSD can be fitted to an expanding range of combines.

De Bruin Engineering, Mount Gambier, Australia


MacDon M1240 Self-Propelled Windrower Tractor


The MacDon M1240 Windrower provides increased speed and improved ride quality with patented CrossFlex suspension. To obtain higher speeds without sacrificing low-speed torque, the windrower varies the displacement of the wheel motors electronically. This leaves the operator with full available wheel motor torque at low speeds, combined with the ability to reach road speeds without the need to shift speed ranges. The 248 horsepower Cummins engine uses dual radiator cooling that draws air from the cleanest location, behind the cab. To keep the clean air flowing constantly, a hydraulic-drive reversing fan blows out unwanted debris on the go, without the need for operator input. An all-new One-Touch-Return preset system allows the operator to adapt to changing field conditions with the push of a button.

MacDon Industries Ltd., Winnipeg, Man.


Kopper Kutter ARRO Conversion for Corn Heads to Harvest Sorghum


The ARRO Alternate Rotary Row-Crop Option from Kopper Kutter consists of a conversion kit for existing corn heads so they can harvest additional crops including sorghum (milo), sunflowers, millet and some cellulosic crops. The reconfiguration kit uses simple sprockets driving the dual disc cutters. It can be installed on reliable base corn heads, preferably those that have been used for a few seasons and have worn stalk rolls and deck plates. These used corn heads already have individual row unit slip clutches, enclosed gear case drives and poly divider shields and points, along with reliable (optional) header height control systems. A benefit of the ARRO head is the long poly points that can lift lodged crops. The higher cutter positioning on the topside of the frame leaves over 10 inches of stalk remaining in the field.

Kopper Kutter, Cimarron, Kan.


Tribine Harvester


The Tribine Harvester is a 4WD grain harvester with a high-capacity threshing and separating front module that is connected by articulation joint to a large 1,000 bushel capacity grain tank on the rear module. By removing the grain tank from the top of the processing unit and removing the guide axle from beneath, the Tribine achieves a new architecture that allows for significant gains in harvesting throughput to accompany the on-board grain tank. The unit features a 38 inch diameter rotor (for increased threshing capacity) underlain by a 103 inch wide cleaning system. On each side of the large rotor is one of two engines that power the unit, giving great weight balance and limitless total power combinations for the harvester’s future. The 40-degree articulated steering, combined with another 22 degrees of rear axle steer, allows the machine to turn tighter than other current combines.

Tribine Harvester, Newton, Kan.

Appareo Gateway 300 Advanced Computing Platform


Gateway 300 is an all-in-one global control, monitoring and telemetry solution, equipping motorized farm vehicles with terrestrial and satellite communication connectivity capabilities enabled by the global Iridium satellite network. Appareo designed this computing platform to provide a wide range of communications technologies, including Wi-Fi, Bluetooth, cellular, GPS, 433 MHz, CAN and Iridium satellite. Gateway 300 is built with a rugged enclosure for outdoor use and for mounting on heavy machinery. The device can collect and distribute real-time data, product and performance data, health and asset management data, location data and security and recovery data, in addition to remote diagnostics and the possibility for future predictive maintenance capabilities. The benefit to farmers is greater uptime for their machines, more optimized use of their machines, and less time and energy required to manage the service and maintenance of their machines.

Appareo, Fargo, N.D.


AGCO Challenger 1000 Series


Designed to deliver lower cost of ownership and improved productivity per acre, the Challenger 1000 Series tractors allow producers to invest in a machine that can serve multiple needs. These compact fixed-frame tractors with flexible ballasting options are designed to prepare an operation for the needs of tomorrow, as producers need to cover more acres in less time, and compete one-for-one on efficiency and cost of ownership with any comparable tractor. The 1000 Series tractors combine the power of a small frame, articulated 4WD tractor with the flexibility and speed of a lighter weight, fixed-frame row crop machine. This allows maximum utilization from spring to fall without the need for two tractors to perform row-crop and heavy tillage work. The Challenger 1000 Series includes four models ranging from 396-517 engine horsepower with a weight range of 31,204-50,706 pounds.

AGCO Corp., Duluth, Ga.


John Deere 9009A Terrain Cut Rotary Rough Mower


The 9009A TerrainCut Rough Mower is a five-gang, 27 inch independent rotary deck mower with a 9 foot cutting width. The deck allows quick, tool-free height-of-cut adjustment, and the asymmetric rear discharge minimizes the need for blowing and dispersing clippings. The 9009A traction system with a standard eHydro traction pump, wheel motors and internal wet disc brakes maximizes performance on undulating terrain while eliminating adjustments and linkages. Operator improvements include AutoPedal, which controls engine rpm and transport speed through the eHydro foot pedal. The TechControl display on the command arm allows the operator to electronically set mowing and transport speed, and control turning speed, deck drop rate and weight transfer. The display also engages the LoadMatch power management feature, which automatically adjusts the machine speed to power the cutting deck to maintain cut quality in heavy load conditions.

John Deere, Moline, Ill.

Anderson Group Pro-Chop 150 Bale Processor


The Pro-Chop 150 bale processor from Anderson Group is a bale blower with a new modular chopper system. The chopper system is easily adjustable to the optimal cutting length for each use (bedding or feeding) and material (straw, hay or haylage). This system is a combination of a new rotor equipped with 264 aggressive knives, a top gate that helps chop fiber when engaged, counter-knives that chop finer when used along the top gate and a removable recutter screen with 2 inch holes that force longer fibers to be recut. The flexibility in cutting length (from no cut to 1 inch) and ability to process all fodder types is unique. A conveyor and comb allow bales to be fed perfectly through the rotor, preventing blockages. The 68 inch diameter blower can spread up to 52 feet and the 5 foot wide chamber is ideal for all round and square bales.

Anderson Group Inc., Chesterville, Que.


TeeJet TTI TwinJet Spray Tip


The TTI60 TeeJet twin flat spray tip provides large droplets for maximum drift control along with the improved coverage of a wide-angle twin spray. By using existing air-induction spray technology in a new configuration and with new geometries optimized specifically for creating Ultra Coarse droplets across the majority of the recommended operating range, TeeJet Technologies has improved spray application coverage while maintaining superior drift reduction in comparison to conventional spray nozzles. Twin style flat spray tips are best suited for broadcast spraying where superior leaf coverage and canopy penetration are important. The single-piece tip and cap design allows for easy installation and, unlike some other twin sprays, has a very compact size. The TTI60 is ideal for the application of systemic, post-emerge herbicides. The drift control makes it ideal for operating near sensitive areas such as susceptible plants, open water or residential areas.

TeeJet Technologies, Wheaton, Ill.

Kondex ToughFlight Auger


Kondex Corp.’s patented laser-clad ToughFlight augers feature proprietary Tungstrong laser cladding on the leading edge of the auger flighting. This tungsten carbide application provides a wear coating that extends the life of the product and prevents grain pinching and damage when used in grain handling applications. The result is better grain quality, and thus better payout to the producer. Unlike other high-wear material applications, laser cladding creates a true metallurgical bond between the substrate and the tungsten carbide powder matrix, preventing it from chipping off while minimizing the heat-affected zone and product distortion during application. The auger also combats wear at its origin through its leading edge application, whereas alternative high-wear augers with additives on the flighting surface will continue to lose material from the outside edge in. The result is significantly greater product life and a better-performing auger that prevents crop trapping.

Kondex Corp., Lomira, Wis.


Claas 4D Cleaning


Claas’ 4D Cleaning is an automatic, multi-directional system that compensates for the combine’s side roll when harvesting on a cross-slope and for the combine’s fore or aft pitch when harvesting uphill or downhill. As the combine leans, the rotor cover plate’s axial louvers angle away from the slope, optimizing the distribution of material passing out of the separation rotor grates onto the rotor returns pan to prevent material build-up on the low side and overburdening the low side of the cleaning shoe, which can cause increased grain loss. When harvesting downhill, the cleaning fan reacts automatically to the forward travel angle of the combine by increasing speed to prevent material build-up in the front area of the cleaning system, and it slows when the combine harvests uphill, as well as opening the lower sieve automatically, allowing grain to pass through the sieve more quickly to minimize the potential for loss.

Claas of America Inc., Omaha, Neb.

Capstan Ag Systems N-Vision Anhydrous Ammonia Sentry

N-Vision carefully monitors every drop of anhydrous ammonia, providing a detailed, real-time look into the tank and plumbing to provide vapor-free liquid to metering and distribution devices. It allows operators to determine exactly when the tank and plumbing capabilities are being overrun, as well as when the tank is truly empty, by actively maintaining a preset liquid level. This in turn allows the operator to make informed application decisions. These decisions garner confidence in application quality with the ability to use more of the anhydrous ammonia in each tank, the company says. Instead of leaving a remaining “buffer amount” in the tank, the entire tank volume can be used, resulting in improved productivity, which enables greater efficiencies in nitrogen distribution and tendering times.

Capstan Ag Systems, Topeka, Kan.

Case IH Tiger-Mate 255 Field Cultivator


The Case IH Tiger-Mate 255 Field Cultivator is a rugged and productive seedbed preparation tool that creates a high efficiency seedbed for the most accurate seed placement. The new Advanced Conditioning System with TigerPaw Crumbler has an easily adjustable front spike bar to optimize leveling and residue flow for various conditions. The frames are designed with high strength-to-weight ratios for maximum durability while minimizing unnecessary compaction. The tire offering includes stubble-resistant radial tires that prevent downtime due to tire failures and reduce compaction by up to 24%. The wheel retraction feature allows the wing wheels to automatically retract during folding, which results in a narrow transport size. The 10 mph maximum operating speed results in a 25% increase in productivity compared to traditional field cultivators of the same size with 8 mph speed limit. The Tiger-Mate 255 is available in working widths ranging from 22-60 feet.

Case IH, Racine, Wis.

Acclima TDR-315L Low Power Consuming Digital
Time Domain Reflectometer/Soil Condition Sensor

The TDR-315L is an integrated, waveform digitizing, true time domain reflectometer that uses high-speed electronics to bring this device down in price by about 25% from its predecessor, and up to 20 times less than it competitors. It has also halved its predecessor’s power consumption. This device accurately measures soil water content (even in saline soils out to 4 dS/m bulk EC), soil temperature, soil (bulk) EC and soil pore water EC. The TDR-315L is a SDI-12 compatible sensor, which makes it a critical component for logging soil water content in SDI-12 moisture monitoring systems. It will work with numerous third-party SDI-12 data loggers as well as with Acclima’s own DataSnap data logger. This newer and more accessible technology will have profound ramifications for researchers and farmers alike in terms of learning how to save water and fertilizers while increasing crop quality and yields, the company says.

Acclima Inc., Meridian, Idaho


Summers VT Flex Applicator

The patent-pending VT Flex Applicator from Summers Manufacturing is a fully customizable fertilizer applicator that precisely places up to three products (dry, liquid and NH3) at high speeds and can be set to 15, 20, 22 or 30 inch row spacing. The coulter blades and application knives can be configured to unique residue management needs. Users can choose between five coulter blade options (coulter spacing can be set for on-row and mid-row) as well as customizable application knives and levelers. The system allows operating speeds of 6-8 mph with dry application rates of 600-700 pounds per acre. The VT Flex Applicator is liquid ready and can accept practically any tank setup.

Summers Manufacturing, Devils Lake, N.D.

Global Industries Ezee Dry

The new Ezee Dry system includes a completely new plenum, bin structure and control system for fully automated grain drying with up to 25,000 bushels of storage capacity. The Ezee Dry system operates by filling the plenum in the upper part of the bin with wet grain. Fans push heated air into the bin below the plenum and through the wet grain. When the grain is dry, the system dumps the grain into the bottom of the bin, where an aeration fan cools the grain. The heat recovered from the dried grain helps dry the wet grain in the plenum. The control system makes the entire system fully automated by moving wet grain to the Ezee Dry, drying the grain and then moving dried grain to a storage bin. The system can be set up to dry grain in continuous flow, automatic batch or manual batch operation.

MFS/York/Stormor/Brownie Systems, a Division of Global Industries, Grand Island, Neb.

Sukup Mixed-Flow Grain Dryer

The Sukup Mixed-Flow Grain Dryer combines the use of mixing/heating chambers with vacuum cooling technology to produce a dryer that removes moisture from grain more evenly and economically than other dryers. The vacuum-cooling system recycles warmed air back into the dryer, which reduces the amount of fuel needed to reach the optimum drying temperature. Fuel savings may exceed 25% compared to traditional pressure-cooled cross-flow dryers. The mixing chambers allow more uniform drying of grain, and they are made of solid sheets instead of perforated material, which eliminates the need to sweep debris from hard-to-reach upper screens on traditional cross-flow dryers. The patent-pending design of the Sukup Mixed-Flow Grain Dryer allows for a single center unloading system, compared to two in competitors’ mixed-flow dryers. This new dryer can be ordered with gravity-flow or auger loading and with auger or drag conveyor unloading.

Sukup Manufacturing Co., Sheffield, Iowa


SpectroCLick AAH-300b Absorption/Reflectance Visible Spectrometer

The AAH-300 is a visible spectrometer coupled to a cloud back-end to allow ad hoc measurement of minor and trace chemicals of importance in agriculture for screening purposes. Personnel trained at the point of use, employing QR-coded reactant packets synchronizing human, instrument and data reduction activities, can screen for environmental, economic or yield-enhancing materials using an instrument that is fundamentally rugged and inexpensive because many functions previously achieved through precision hardware are now performed in software. While the current product provides absorption and reflectance spectrometry with a dedicated camera, the technology should easily transfer to smartphone cameras, further reducing cost and enhancing portability. Applications include optimizing fertilizer use to control costs and environmental impact, detecting the levels of desirable bioconstituents and screening for toxins, impurities or contaminants. Data is automatically archived in the cloud, establishing a chain of custody while maintaining confidentiality.

SpectroClick Inc., Champaign, Ill.

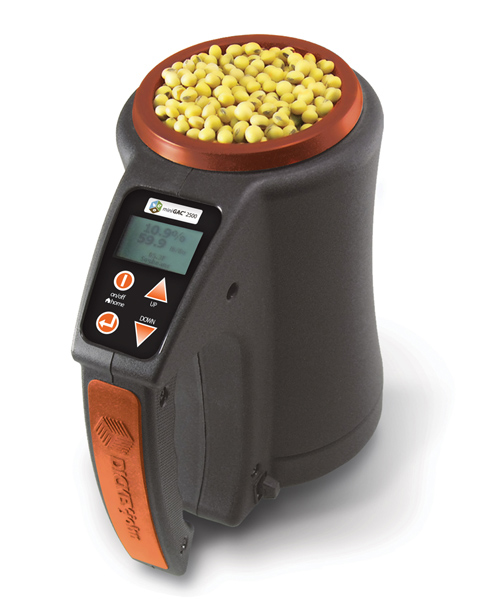

Dickey-john Mini GAC 2500 Grain Moisture Analyzer

The Dickey-john mini GAC 2500 is the only handheld moisture tester that uses 149 MHz/UGMA technology for grain moisture analysis. The benefit to producers and seed companies of this new technology is that the mini GAC 2500 will consistently match the new UGMA moisture testing at the elevator. Using 149 MHz/UGMA technology provides farmers with control and accuracy not achievable before with a handheld tester. Capturing data and calibrating equipment, such as harvesting equipment, makes this new development a necessity. Dickey-john’s “Moisture Manager,” a new mobile app, gives farmers greater control of data capture and transfer, resulting in improved grain moisture decisions.

Dickey-john, Auburn, Ill.


Kubota RTV X1140 Utility Vehicle

The new Kubota RTV X1140 Series of utility vehicles provides customers with significant enhancements in comfort and performance, building on the reputation of the RTV series. The new K-vertible Cargo Transformation System allows the RTV X1140 to be converted between 2-passenger and 4-passenger configurations in less than a minute while still allowing easy access to the cargo bed. In 4-passenger configuration, the X1140 has 9.9 cubic feet of cargo space, converting to 19.1 cubic feet in 2-passenger configuration. The integration of four-wheel independent suspension coupled with the reliability of the 24.8 horsepower Kubota diesel engine and the exclusive two-range VHT-X variable hydraulic transmission make the RTV X1140 dependable and smooth-riding, while the ROPS and cargo bed transformation system make the RTV X1140 unique in the industry, the company says.

Kubota Tractor Corp., Torrance, Calif.
