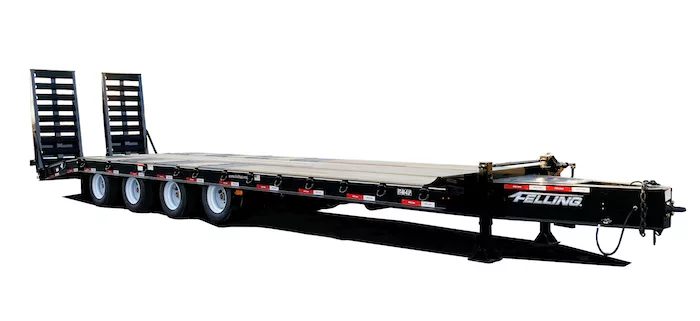

Felling Trailers' LP HD series tag has been designed and engineered to accommodate equipment that has an 8-8.5 foot wide track gauge (center to center of tracks), which will concentrate the machine's weight directly over the side rails, typically 10 foot+ overall width machines.

Low Pro Heavy Duty Standard Specifications (triple & quad axle)

  • 16 inch tall, fabricated Grade 80 main frame beams (stepped down in trunnion area)
  • 0.5 inch thick main frame beam flange material
  • 6 inch high tensile Jr I-beams Grade 80, spaced 12 inches on center
  • 10 inch channel side rail (full length) rails turned out
  • Standard 1.375 inch thick apitong decking (white oak optional)
  • Standard 1 inch bent D-Rings – 16 on Triple, 20 on quad axle
  • 235/75R17.5 J Tires and 25K heavy-duty 3 leaf spring suspension
  • 6 foot double incline beavertail with 6 x 20 foot spring assist ramps (self-cleaning or wood inlaid)
  • Optional 38 inch wide x 7 foot long air powered ramps (self-cleaning or wood inlaid)
