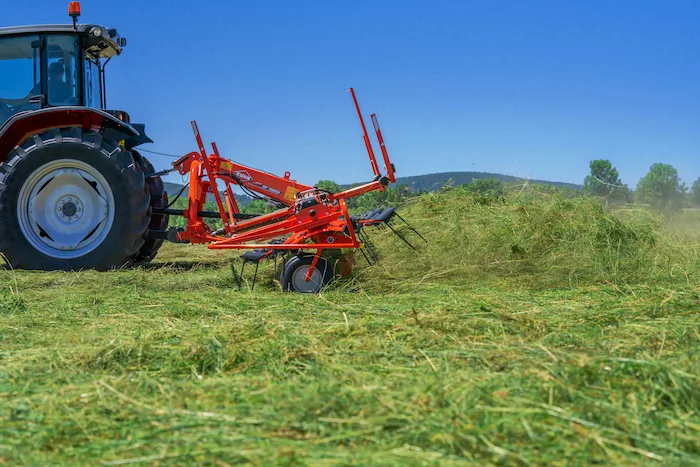

The KUHN GF 1003 Series Trailed and Mounted Rotary Tedders provide efficient, uniform fluffing and smooth performance over irregular ground. OptiTedd small-diameter rotors improve rotor strength, promote superior ground following and support uniform crop dry down with the help of complete crop inversion.

The DigiDrive coupling system makes it possible to reliably drive a large number of rotors, while still allowing folding for unmatched transport ease. DigiDrive contains case-hardened forged steel fingers for improved wear resistance. Synchronization of rotational movement is outstanding both in work and in transport where the components are folded nearly 180 degrees to reduce the machine’s space requirement. It is a highly reliable system requiring very little maintenance, with no daily greasing necessary.

Robust rotor gearboxes are supported by large-diameter, double-row angular ball bearings. Sealed rotor housing prevents lubricant leaks and the introduction of contaminants. The sturdy mounting of rotor gearbox housings to the edge of the frame maximizes strength and durability.
