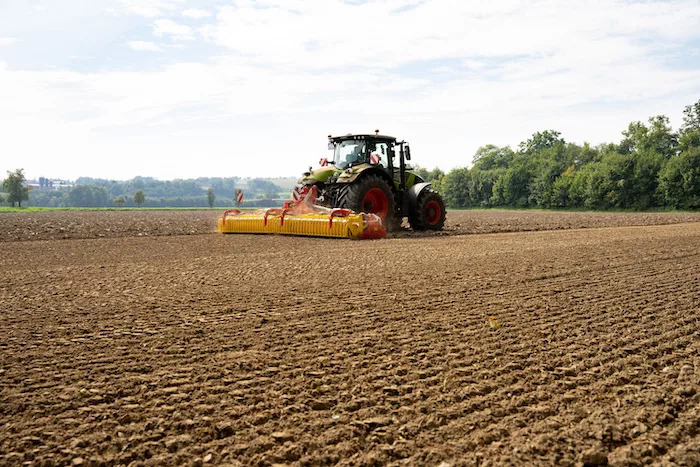

Pöttinger's LION 1002 C Series Power Harrow's integration of the folding frame has made the machine more compact and optimized weight distribution. A newly developed PTO with 2-speed gearbox enables a wide speed range. The 1002 C series is designed for PTO speeds between 750 and 1,300 rpm. This ensures that the tractor always runs within its optimum performance range. Reliability is enhanced as a result. A high-capacity gearbox housing provides the necessary cooling. The rotor speeds vary between 320 and 420 rpm. This ensures perfect working results while reducing fuel consumption. Thanks to its strongly dimensioned external gearbox, the power harrow is approved for tractor outputs of up to 500 hp. No tools are required to adjust the machine. This is done from the side of the machine - an intuitive indicator scale acts as a guide.

The leveling board is guided at a consistent pre-defined distance above the soil without changing its distance from the tines or its pre-set height. This patented solution delivers the most level and uniform tilth structure for the seedbed, even in varying soil conditions.

Learn more at www.Poettinger.at.
